Connect Google Ads API to Outloop

Last updated: June 13, 2026

Why Google Ads setup is different

Google Ads is not a "paste one API key" service. Real account access needs multiple parts:

client_id          = Google Cloud OAuth app identity
client_secret      = OAuth app secret
refresh_token      = long-lived OAuth token after consent
developer_token    = Google Ads API access token from API Center
login_customer_id  = MCC / manager account ID
customer_id        = the client ad account ID

These should not be pasted into generic API-key fields — Google Ads needs a dedicated OAuth-aware setup flow, which is how Outloop handles it.

Google Ads API: direct setup vs Outloop-managed setup

Google Ads API gives agencies powerful access, but it is not a simple API-key setup. A direct setup means the agent or workflow must handle OAuth credentials, refresh tokens, developer tokens, MCC routing, customer IDs, request headers, and tenant safety. Outloop keeps that sensitive setup host-side and gives the agent a safer way to request Google Ads actions without seeing the secrets.

Step 1: Create a dedicated Google Cloud project

Use a project reserved for API access — for example outloop-google-apis — kept separate from any website or product infrastructure projects. It holds three things: the enabled Google Ads API, the OAuth consent screen, and the OAuth client credentials.

Step 2: Enable Google Ads API

APIs & Services → Library → Google Ads API → Enable

Step 3: Create OAuth client credentials

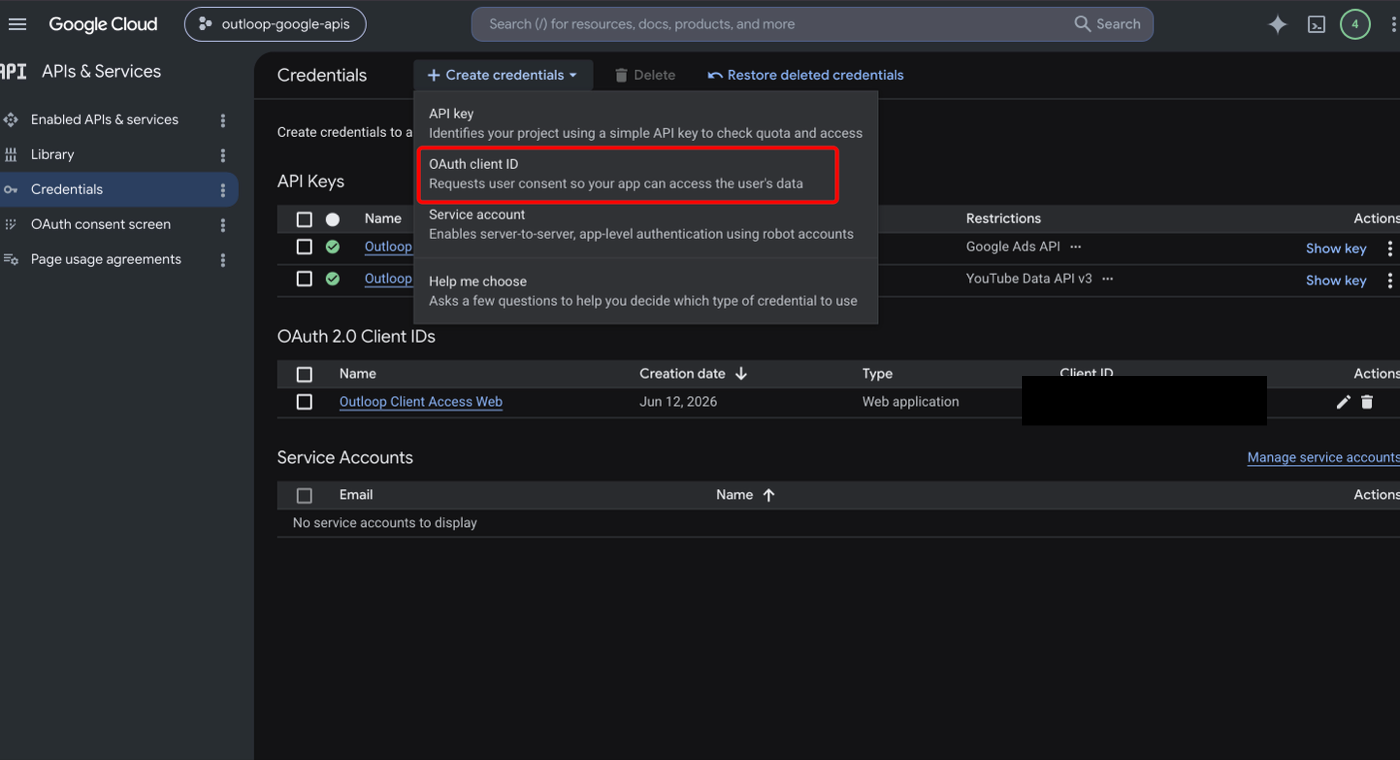

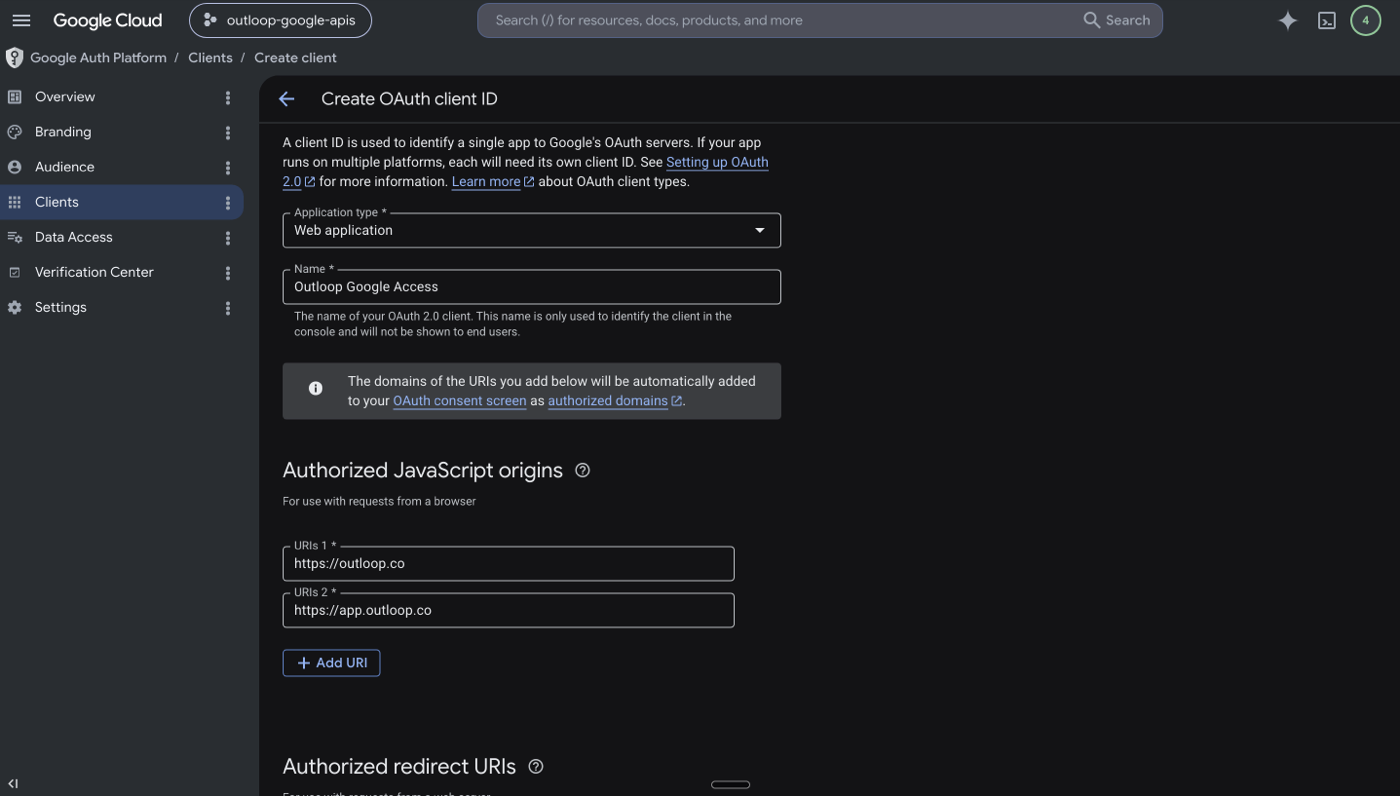

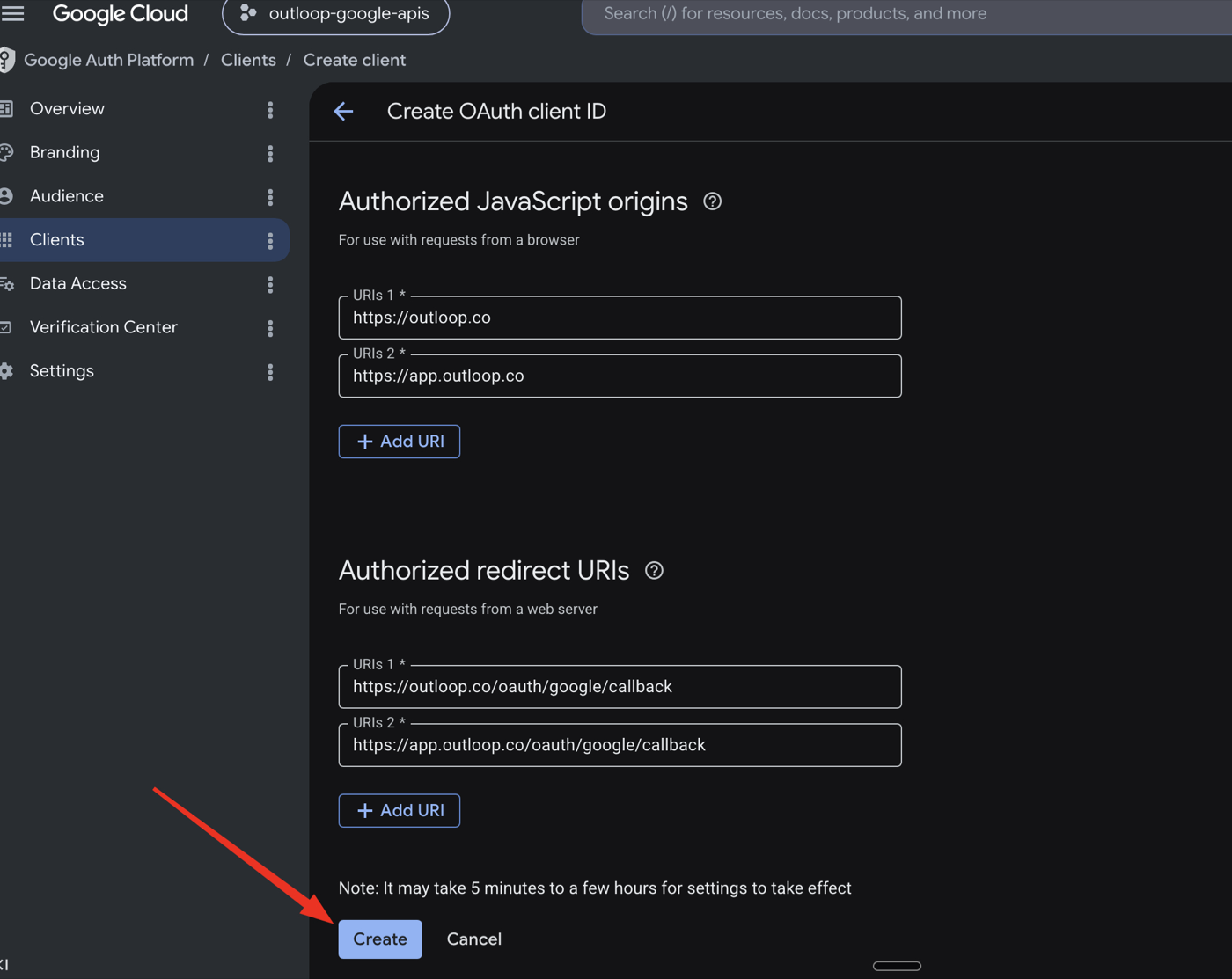

APIs & Services → Credentials → Create credentials → OAuth client ID, application type Web application, with your own authorized origins and redirect URIs (the Outloop setup flow will tell you the exact callback URL to register).

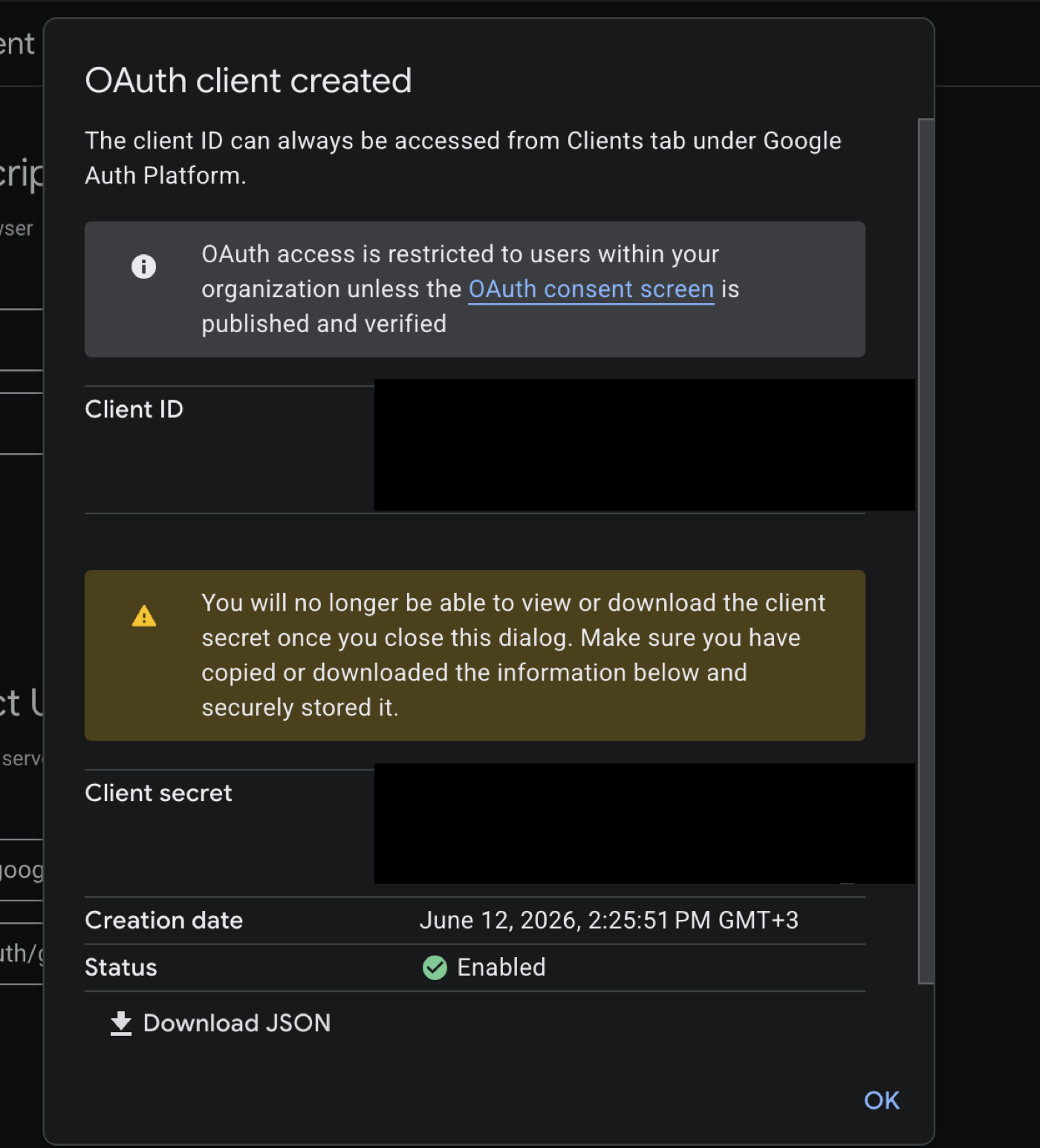

After creation, Google shows the Client ID and — once only — the Client Secret. Do not paste these into chat. Store them only through Outloop's secure setup flow.

Step 4: Set up OAuth consent

The OAuth consent screen must be configured before anyone can authorize access. Use a neutral, accurate app name (for example Outloop Client Access) and your business email for the support and developer contacts. Do not claim official Google partnership anywhere in the consent copy.

Step 5: Get the Google Ads developer token

In the Google Ads manager account (MCC):

Tools & Settings → Setup → API Center → Developer Token

The developer token comes from Google Ads, not Google Cloud — missing this distinction is the most common setup failure. Do not paste the developer token into chat.

Step 6: Submit the API token application if needed

For full access levels, Google may require an API token application with tool-design documentation. Honest, typical answers for an agency tool:

Company type:   Agency/SEM
Use case:       Internal users only
Campaign types: Search, Performance Max, Display, Demand Gen, YouTube
Capabilities:   Account Management, Campaign Creation,
                Campaign Management, Reporting, Keyword Planning

If the tool is for your agency team and contractors, do not choose public/external users — and do not choose Account Creation unless the tool actually creates Google Ads accounts through the API.

Step 7: Generate the OAuth refresh token with OAuth Playground

Google Ads needs a refresh token — the long-lived OAuth token Outloop stores locally so it can mint short-lived access tokens host-side. For manual setup, the simplest way to get one is Google's OAuth Playground.

7.1 Add OAuth Playground as a redirect URI

In Google Cloud:

APIs & Services → Credentials → OAuth 2.0 Client IDs → your Web application client

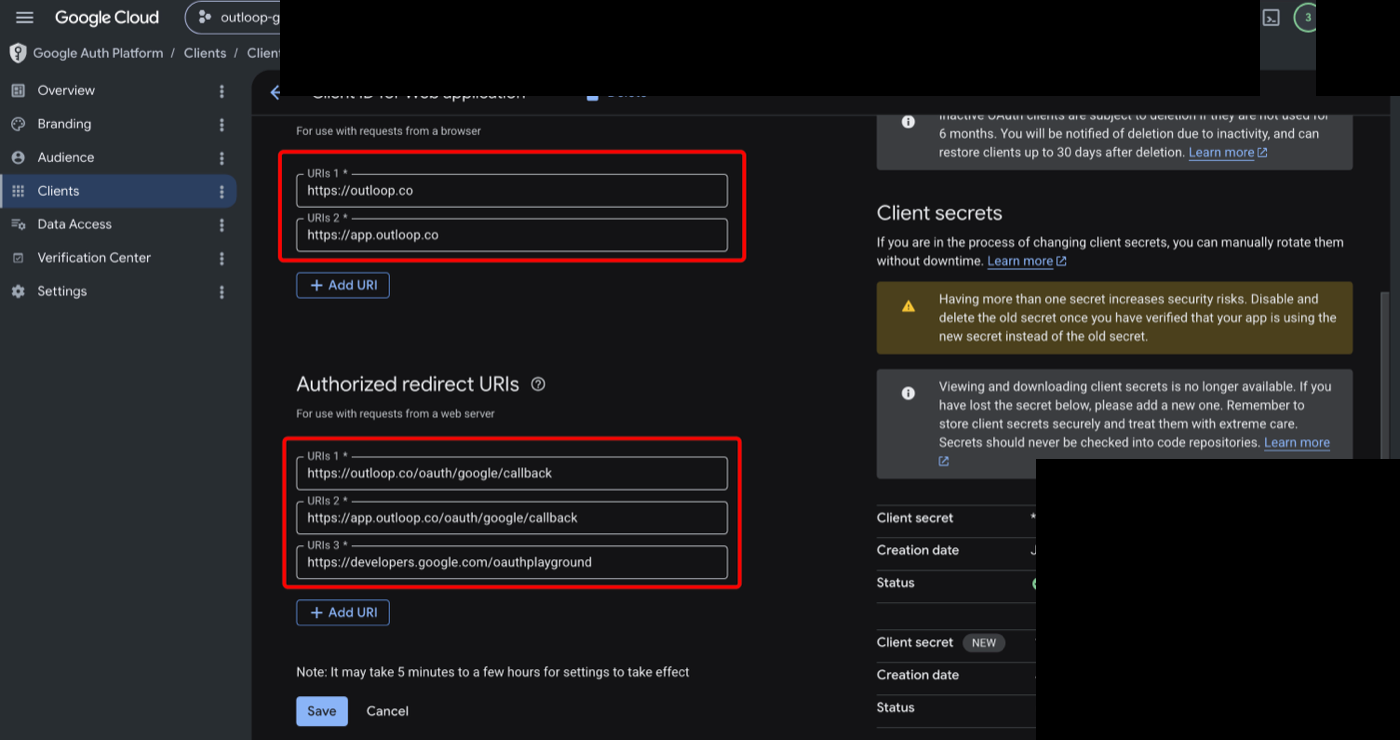

Under Authorized redirect URIs, add https://developers.google.com/oauthplayground and save. This fixes the common redirect_uri_mismatch error.

7.2 Open OAuth Playground settings

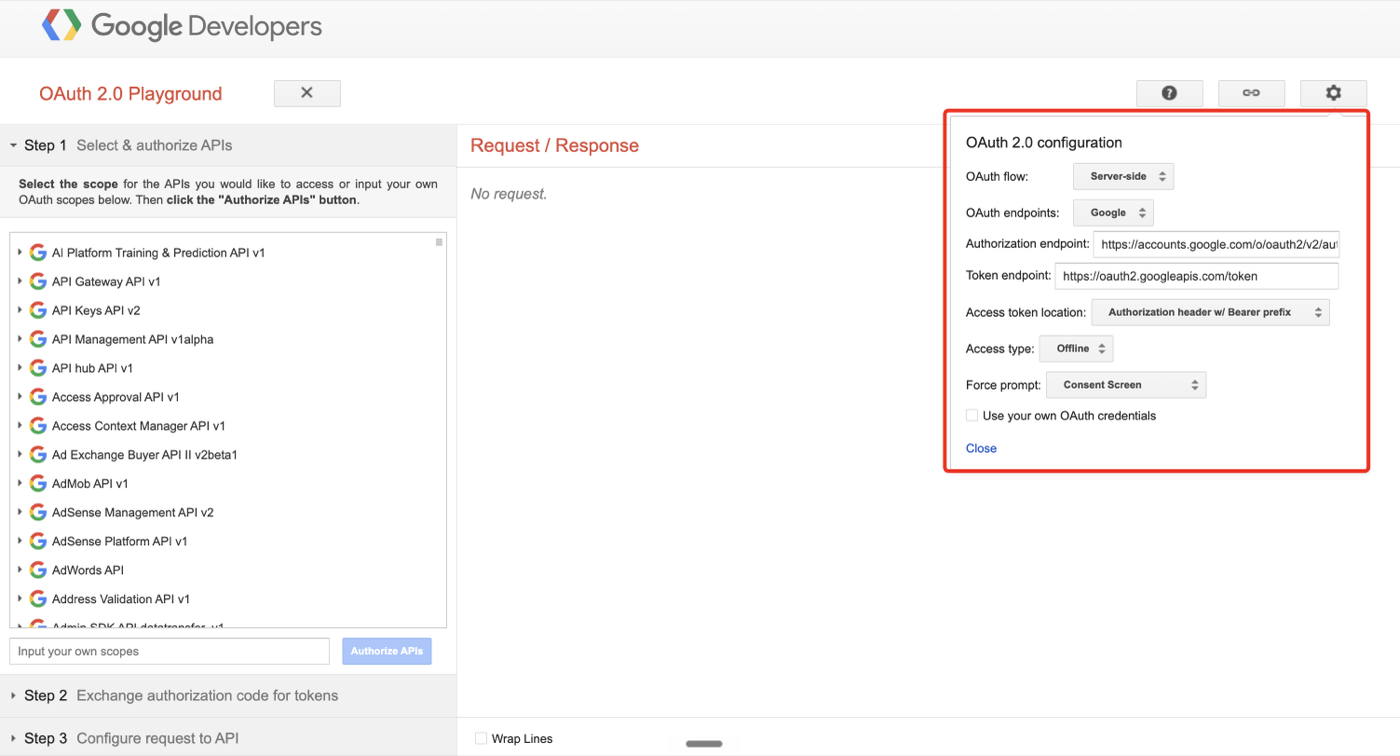

Go to https://developers.google.com/oauthplayground and click the gear icon. Set:

OAuth flow:              Server-side
OAuth endpoints:         Google
Access token location:   Authorization header w/ Bearer prefix
Access type:             Offline
Force prompt:            Consent Screen

7.3 Use your own OAuth credentials

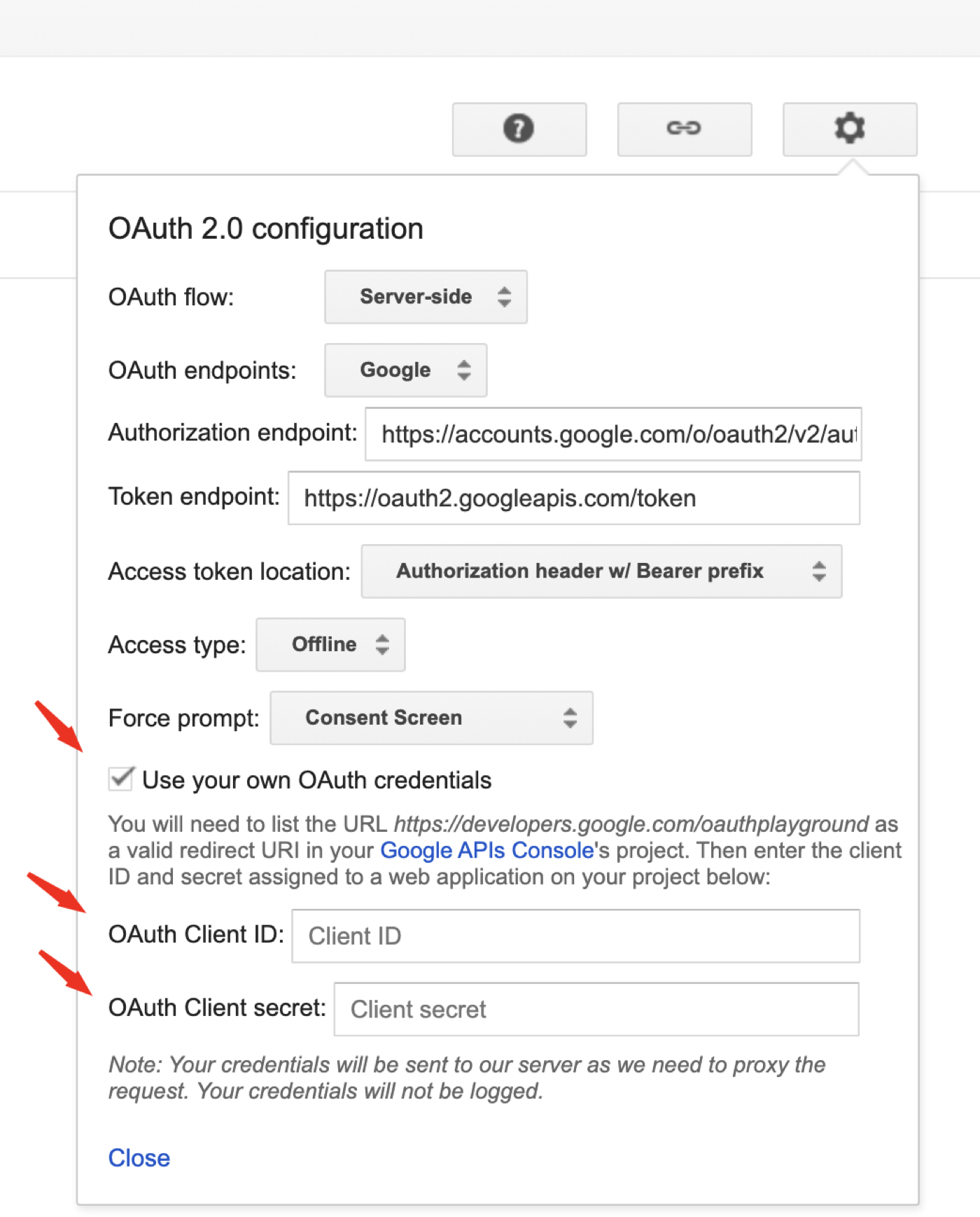

In the same settings panel, check Use your own OAuth credentials and paste the OAuth Client ID and OAuth Client Secret from the same Google Cloud client you created for Outloop. Do not paste these values into chat, docs, tickets, screenshots, or project files.

7.4 Add the Google Ads scope

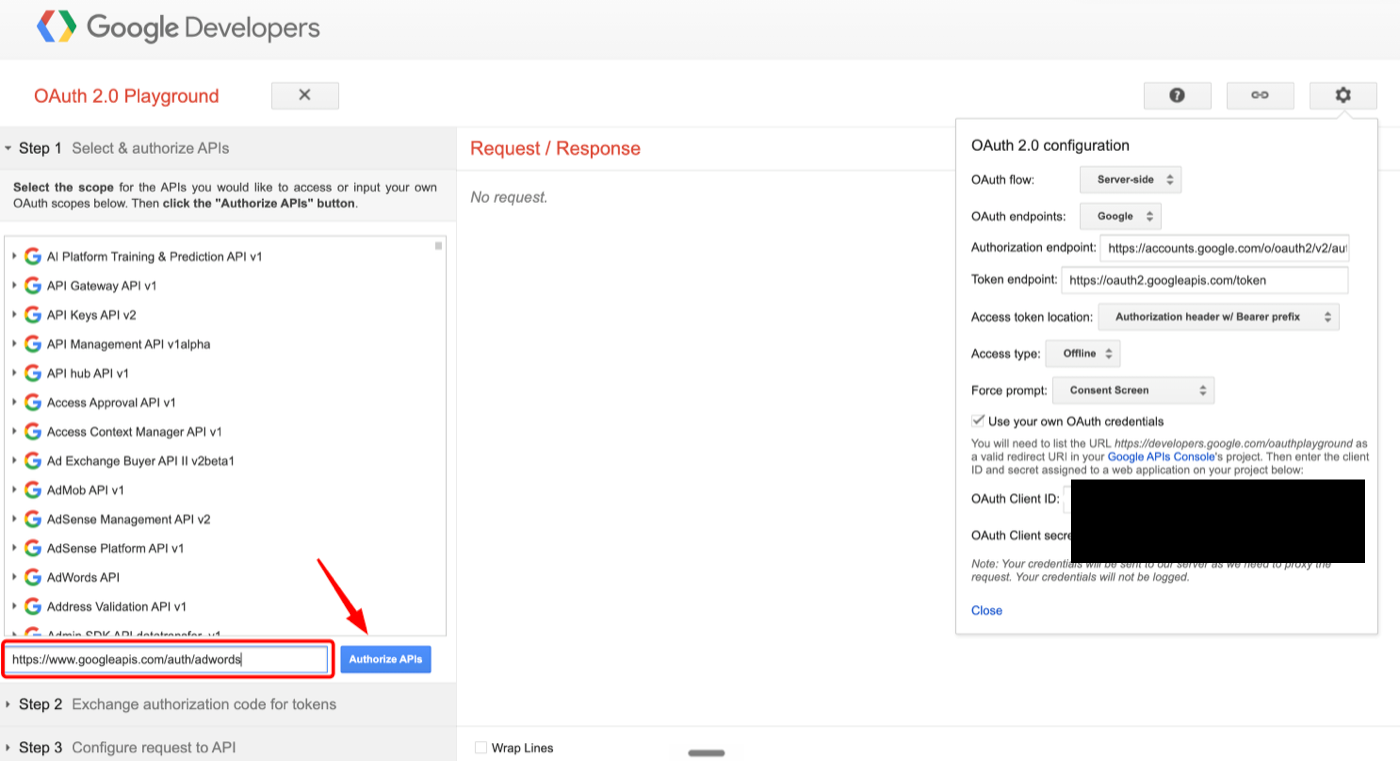

Close the settings panel. In Step 1, paste this scope:

https://www.googleapis.com/auth/adwords

Click Authorize APIs and sign in with the Google account that has access to the MCC / Google Ads accounts.

7.5 Exchange authorization code for tokens

After authorization, open Step 2 and click Exchange authorization code for tokens. Copy only the refresh_token and paste only the refresh token into Outloop.

If no refresh token is returned, the access type was not Offline or consent was not forced — see common errors. Once Outloop has the refresh token, it exchanges it for short-lived access tokens host-side; the raw refresh token never leaves your machine and the agent never sees it.

Step 8: Add Google Ads access in Outloop

Outloop's Google Ads setup collects six things. What each one is and where it comes from:

• •Client ID — from the Google Cloud OAuth client (Step 3).
• •Client Secret — from the Google Cloud OAuth client. Google may show it only once; if lost, create a new secret.
• •Refresh Token — from OAuth Playground Step 2 (Step 7.5).
• •Developer Token — from the Google Ads API Center (Step 5).
• •Login customer ID — the MCC / manager account ID, digits only, no dashes.
• •Client customer ID — the specific Google Ads account this Outloop workspace is allowed to use, digits only, no dashes.

Expected configuration:

service: google_ads
auth_type: oauth_refresh_token
token_url: https://oauth2.googleapis.com/token
client_id: <CLIENT_ID>
client_secret: <CLIENT_SECRET>
refresh_token: <REFRESH_TOKEN>
developer_token: <DEVELOPER_TOKEN>
login_customer_id: <MCC_ID>          # digits only, no dashes
customer_id: <CUSTOMER_ID>           # digits only, no dashes
base_url: https://googleads.googleapis.com

At request time the broker injects the runtime headers host-side:

Authorization: Bearer <ACCESS_TOKEN>
developer-token: <DEVELOPER_TOKEN>
login-customer-id: <MCC_ID>

The agent never sees these headers.

MCC vs client customer ID

The MCC is the manager account — the account Outloop logs in through. The client customer ID is the specific Google Ads account this workspace is allowed to manage. For tenant-safe access, Outloop needs both:

login_customer_id = <MCC_ID>
customer_id       = <CUSTOMER_ID>

One MCC may access many accounts, but one Outloop workspace should only be mapped to the customer IDs it is allowed to use.

Step 9: Map customer IDs to workspaces

This is the most important Outloop part. Example shape:

workspace_001
→ allowed Google Ads customer_id: <CUSTOMER_ID>
→ login_customer_id: <MCC_ID>

If another workspace tries to use that customer ID: deny before backend read. That is the wrong-client protection that makes one MCC safe to use across many client workspaces.

Step 10: Run a safe proof

The first proof should be read-only. Use the list-accessible-customers endpoint:

/customers:listAccessibleCustomers

Correct request envelope example:

{
  "tenant": "<WORKSPACE_ID>",
  "service": "google_ads",
  "verb": "api_bridge.request",
  "method": "GET",
  "path": "/customers:listAccessibleCustomers"
}

Success criteria:

decision: allow / OK
HTTP 200
secret_exposed: false
accessible customer returned
audit entry exists

Do not mark Google Ads runtime-verified until this proof succeeds through Outloop.

Production readiness checklist

Do not mark Google Ads runtime-verified until all are true:

• ✓OAuth refresh works.
• ✓Developer token and login_customer_id are present.
• ✓customer_id is mapped to the workspace.
• ✓Safe read proof returns HTTP 200.
• ✓Wrong customer/workspace test is denied before backend read.
• ✓No secrets appear anywhere.

Common mistakes

• ✕Creating a plain Google Ads "API key" and expecting it to work.
• ✕Pasting only client_id and treating it as a token.
• ✕Skipping the developer token or login_customer_id.
• ✕Using the wrong MCC.
• ✕Storing the refresh token in project files.
• ✕Letting the agent choose any customer ID.

Common errors and fixes

redirect_uri_mismatch

Meaning: the OAuth Playground redirect URI is missing from Google Cloud. Fix: add https://developers.google.com/oauthplayground to Authorized redirect URIs on your OAuth client (Step 7.1).

No refresh_token returned

Meaning: the consent did not use Offline access, or consent was not forced. Fix: in OAuth Playground settings set Access type: Offline and Force prompt: Consent Screen, then authorize again.

404 on /v24/v24/…

Meaning: the request path included /v24, but the bridge base URL already has it. Fix: use /customers:listAccessibleCustomers, not /v24/customers:listAccessibleCustomers.

Google Ads API key does not work

Meaning: a plain API key was created in Google Cloud. Fix: Google Ads account access needs OAuth Client ID + Client Secret + Refresh Token + Developer Token — a plain API key cannot manage accounts.

The Outloop value

Google gives the API access. Outloop makes it usable safely across clients:

One agency MCC can manage many client accounts.
Outloop maps each customer_id to the right workspace
and blocks wrong-client account use.

Related: AI agent API key management · wrong-client access · Meta Ads API setup · Zoho CRM setup.

Outloop is in commercial beta (controlled design-partner prep). Outloop is an independent tool and is not affiliated with or endorsed by Google. See the security model.
