Learn · Setup guides
Connect Google Analytics GA4 to Outloop
Last updated:
In short
Google Analytics GA4 uses OAuth, not an API key.
You enable the GA4 Admin and Data APIs, create one Google Cloud OAuth client, and exchange it for a refresh token. Outloop stores the OAuth credential locally in macOS Keychain, pins it to the numeric GA4 Property ID, and lets agents use it only through the API Bridge — minting short-lived access tokens host-side, so the agent never sees the Google token.
What this setup gives you
You will enable the GA4 APIs in Google Cloud, create a Google OAuth client, generate a refresh token, copy the numeric GA4 Property ID into Outloop, and run a first proof through your agent. Outloop stores the credential locally and uses it through the API Bridge — the agent never sees the Google refresh token or access token.
client_secret, refresh_token,
access_token, Authorization header, or Bearer token. Their only destination is
the Outloop Mac app — never Outloop Cloud, the website, chat, docs, or .env files.
What you need before starting
- ✓Access to a Google Cloud project.
- ✓Access to the relevant GA4 property.
- ✓Outloop installed and activated, with a workspace selected.
- ✓The Google Analytics Admin API and Google Analytics Data API enabled (Step 1).
Which Google account connects what
Three separate identities — keep them apart
Most failed Google Analytics GA4 setups are one confusion: assuming the Google account that manages the Cloud project is also the account that can open the client's GA4 property. It does not have to be, and often should not be.
- 1
The Google Cloud project and OAuth app
This owns the Client ID and Client Secret. It can belong to your agency or to your client — Outloop does not care which, and cannot tell the difference.
cloud-admin@agency.example— manages the Google Cloud project - 2
The connected Google account
This is the account you pick in Google's own chooser during the browser sign-in. It is the account that must actually own or be able to open the client's GA4 property.
data-owner@client.example— is chosen at sign-in because it owns the client's GA4 property - 3
Outloop workspace access
This decides which workspace may use the stored credential, which resources it may reach, and which capabilities agents get. It is set in the Access Profile, after the sign-in succeeds.
In that example, cloud-admin@agency.example
created the OAuth app once, and every connector after it reuses that app — but the account you
actually sign in as is data-owner@client.example,
because that is the identity Google Analytics GA4 will check when an agent asks for a file.
- →If the app's audience is External and it is still in Testing, the account must be added as a Test user first.
- →If the audience is Internal, only accounts inside that Google Workspace organisation can sign in at all.
- →The Google Analytics Data API must be enabled in the Google Cloud project the app belongs to.
- →The account must genuinely have access to the client's GA4 property. A successful sign-in proves identity, not reach.
1. Enable the two GA4 APIs

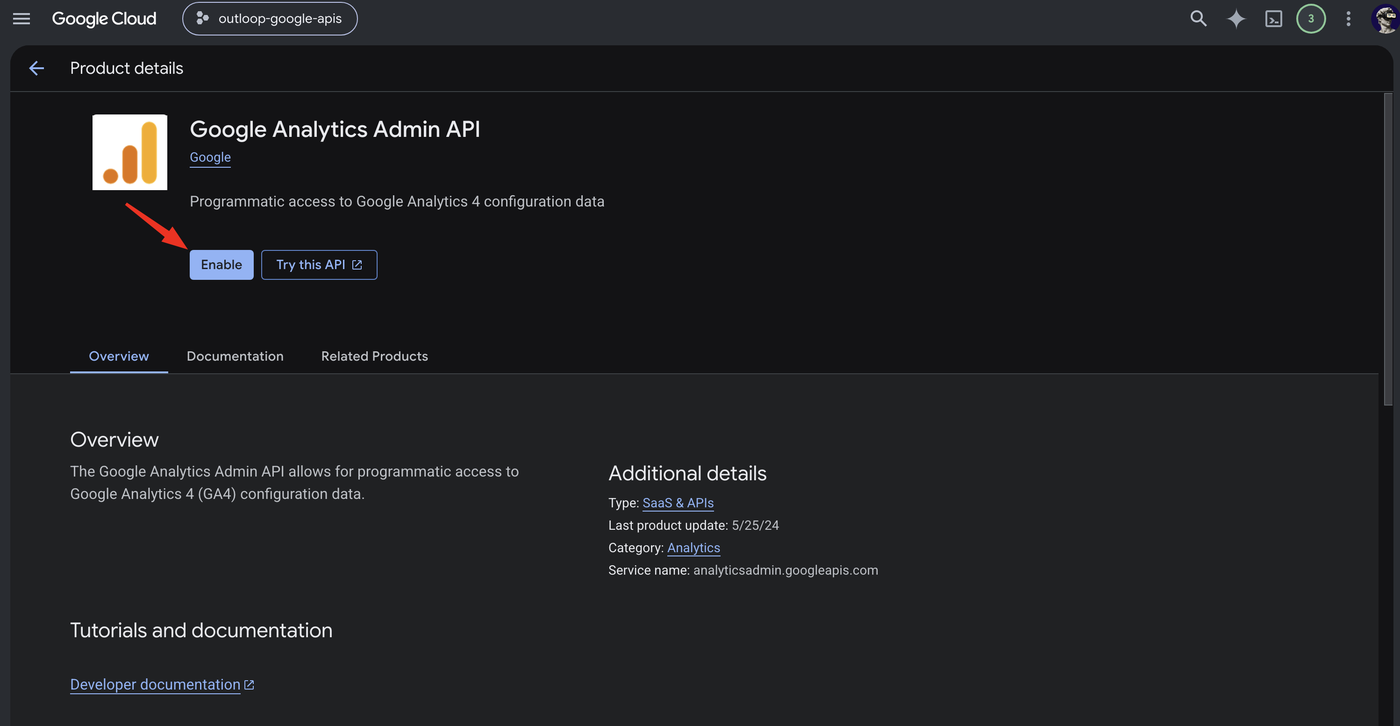

In Google Cloud Console, open APIs & Services → Library, search Google Analytics Admin API, and click Enable. This is the configuration API (account and property summaries).

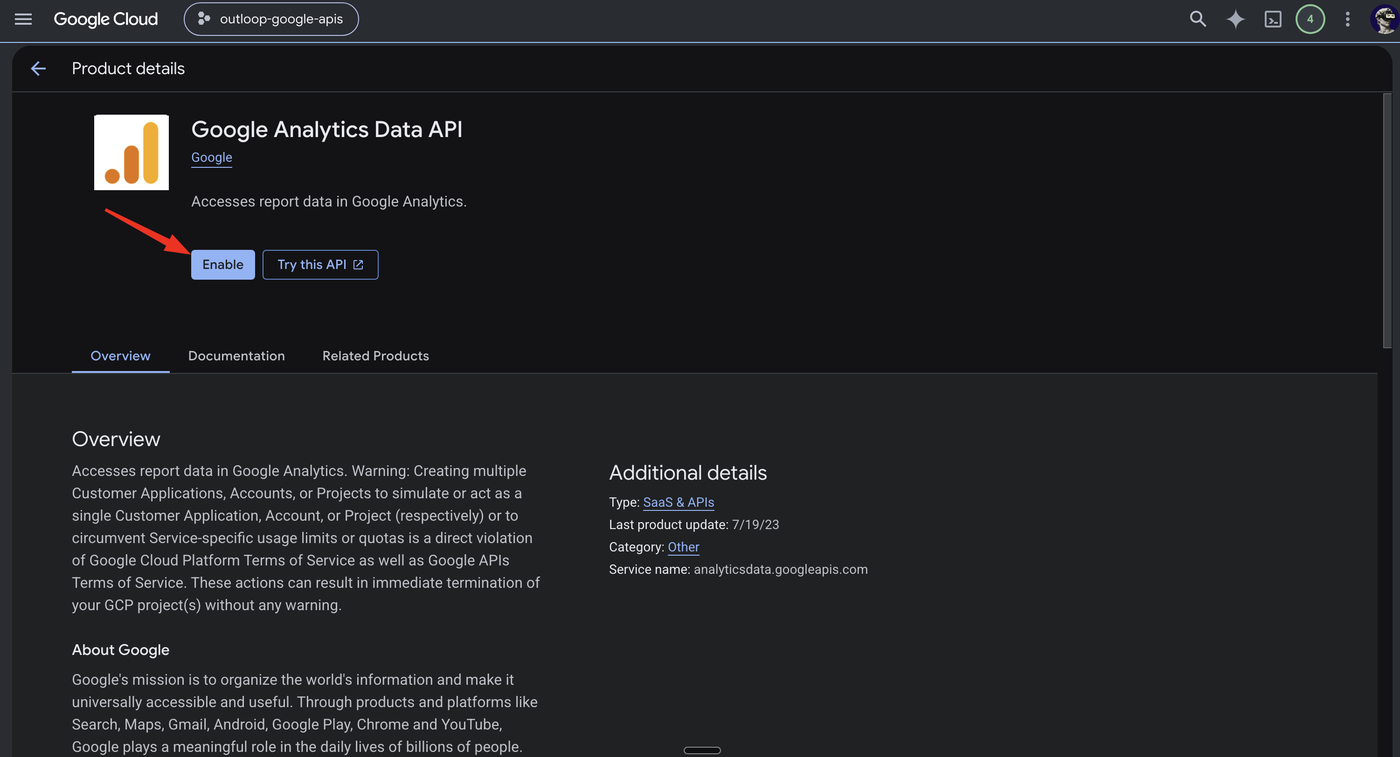

Go back to the Library, search Google Analytics Data API, and click Enable. This is the report-data API.

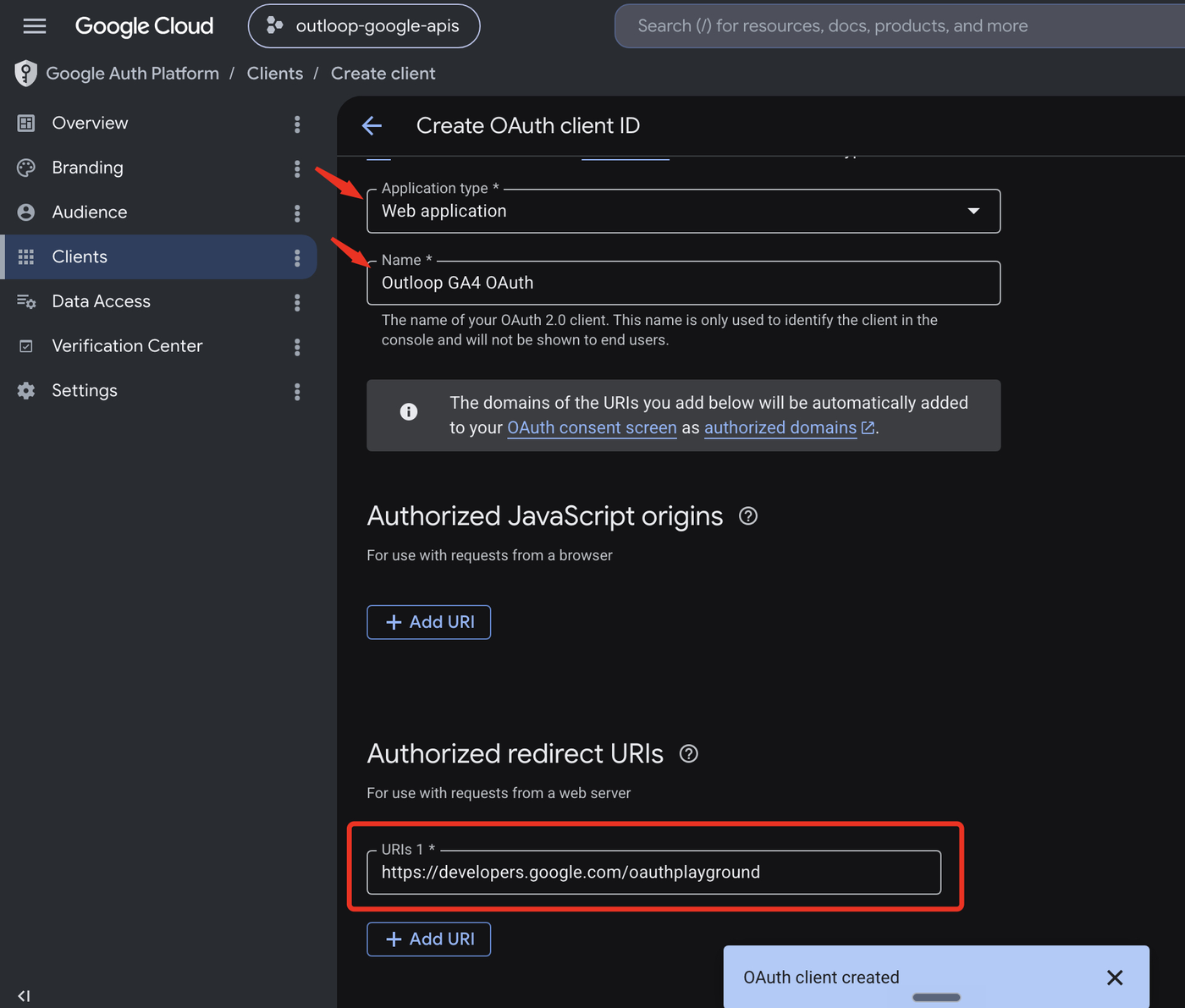

2. Create an OAuth client (once, for all Google connectors)
In Google Auth Platform → Clients, create a new OAuth client. Choose Application type: Web application, name it Outloop GA4 OAuth, leave Authorized JavaScript origins empty, and under Authorized redirect URIs add the OAuth Playground URL:
https://developers.google.com/oauthplayground
Click Create, then copy the Client ID and Client secret from the dialog.
3. Find the numeric GA4 Property ID
Outloop needs the numeric Property ID — not the
G-… Measurement ID. In Google Analytics, open
Admin → Property details. The numeric
PROPERTY ID is at the top right — click the copy icon to copy it.

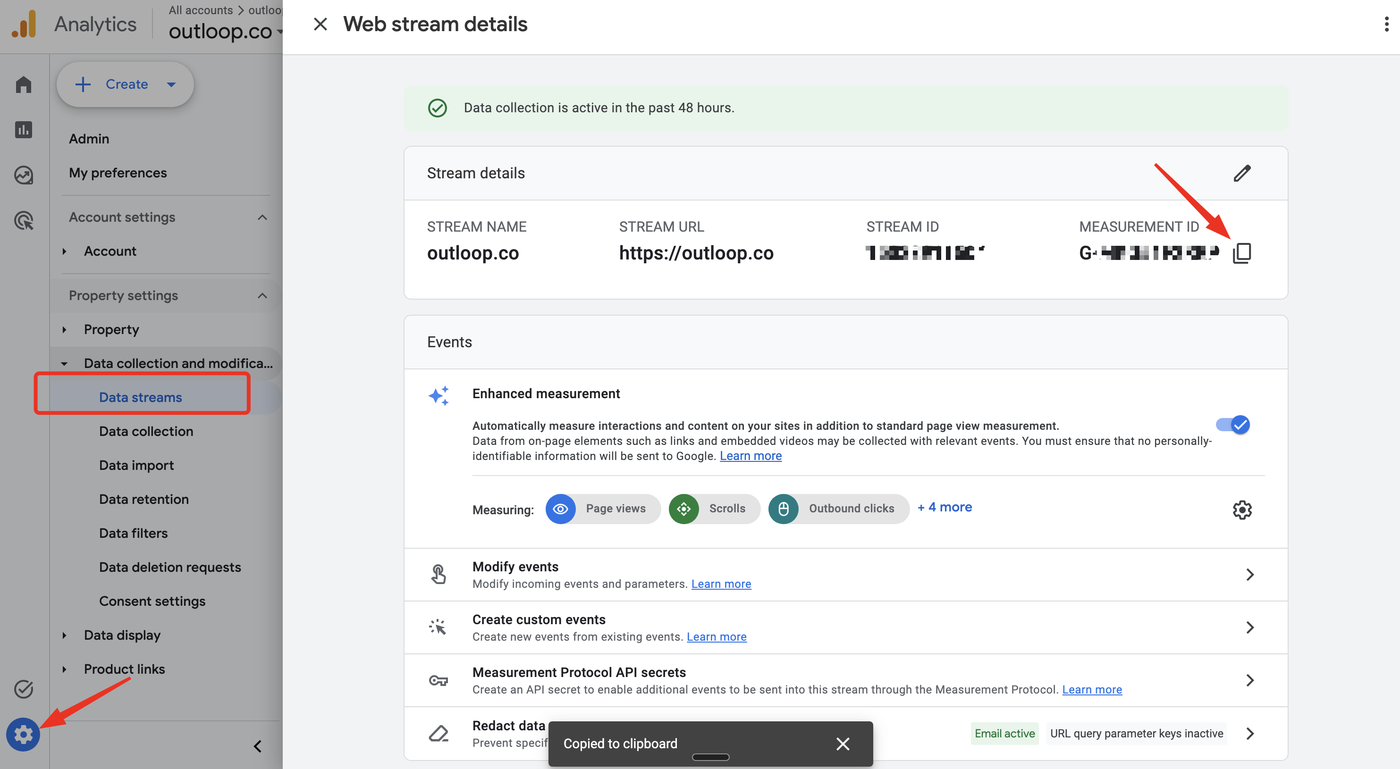

Correct (numeric Property ID): 540642806 Wrong (Measurement ID): G-XXXXXXXXXX
G-… Measurement ID — that belongs to the web stream tag, not the API. Go to
Property details and copy the numeric Property ID instead.
4. Add Google Analytics GA4 in Outloop
In Outloop, open API Access → Add an API key and choose Google Analytics GA4. Use Agency-global / shared when the same Google user can access multiple GA4 properties and you want to grant workspaces over time — tick the workspace that should use it. Outloop still pins runtime use to the specific numeric GA4 Property ID you enter.
You only enter the Google OAuth app once
The first Google connector you set up asks for the Client ID and Client Secret from your Google Cloud OAuth client. Tick save as my default Google OAuth app and every later Google connector — Gmail, Drive, Sheets, Search Console and Google Ads — picks it from the Google OAuth app dropdown with no Client Secret to re-enter. When a saved profile supplies the app, Outloop shows “Using <client-id> — no Client Secret needed. This connector still signs in separately and gets its own access.”
Reusing the app does not mean sharing one login. Each connector still opens its own browser sign-in and gets its own refresh token, its own scopes and its own connected account — so you can revoke or re-authenticate one connector without touching the others.
Shared agency app or workspace-dedicated?
Which setup should I choose?
There are two reasonable answers for Google Analytics GA4, and the right one depends on who owns the Google Cloud infrastructure — not on how many clients you have.
Agency-global (shared OAuth app)
One OAuth app your agency owns, reused by every Google connector you add. This is the default and the right choice for most agencies.
- ✓Client ID and Client Secret entered once, then picked from a dropdown.
- ✓Every connector still runs its own Google sign-in.
- ✓Each one gets its own scopes, its own refresh token, its own connected account and its own revocation.
- ✓Reusing the app grants no data access by itself — workspace grants and Access Profiles stay explicit.
Workspace-dedicated
A separate OAuth client — or a separate Google Cloud project — for one workspace or one client.
- →The client owns the Google Cloud infrastructure and wants to keep owning it.
- →They need stronger administrative separation, or their own consent branding and audience rules.
- →They want separate quotas and their own lifecycle control.
- →The client owns the GA4 property and their analytics lead wants the OAuth app inside their own Google Cloud project.
A separate Google Cloud project is the strongest operational separation. A separate OAuth client inside the same project is lighter separation — useful, but the project is still shared.
5. Connect the account in your browser
The panel opens on Connect in your browser, with the Cloud Console detail tucked into the collapsed Setup details — Google Cloud OAuth client, scopes and caveats and Before you connect disclosures. Under Access to request from Google, pick the level agents should have — the full option is preselected with (recommended) in its label, and read-only is offered but never preselected. Check the Google OAuth app dropdown; a saved profile supplies the app with no Client Secret to re-enter.
Click Connect Google Analytics GA4 in your browser. Google's own sign-in opens, you sign in with the account that can read the property, and you approve the consent screen there. Outloop mints and stores the refresh token host-side — nothing to copy, nothing on your clipboard.
6. Confirm the account and capabilities
Outloop shows Connected as the Google account you used — check it before an agent pulls a client report. Under Agents will be able to (change any time in the Access profile), practical capabilities are pre-checked and destructive ones are prefixed ⚠ and left unchecked. Click Confirm — this is the approved account.
7. View the stored key
OAuth is not the finish line — the Access Profile is
When Google Analytics GA4 hands you back to Outloop, the connector is authenticated but not yet authorized. Agents cannot use it until you make the authorization decision yourself:
- OAuth connected
- Confirm the account
- Open the Access Profile
- Approve the GA4 Property ID
- Choose capabilities
- Save the Access Profile
- Copy the proof prompt
In the Access Profile you set two things. Reach — the one approved entry under Property ID that this workspace may use. And capabilities — what agents may actually do inside it, with anything destructive left off unless you turn it on.

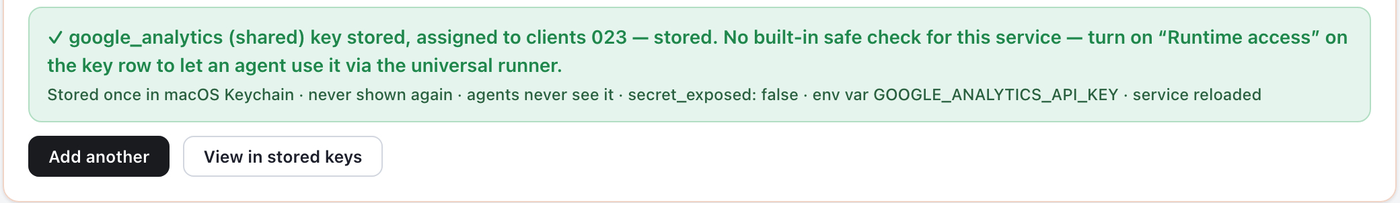

Outloop confirms the credential is stored in macOS Keychain with
secret_exposed: false. Click
View in stored keys to open the key row and copy the workspace run prompt.
8. Run the first proof
Paste the workspace run prompt into your agent. The first proof verifies GA4 access through Outloop with a read of your account and property summaries:
GET /v1beta/accountSummaries

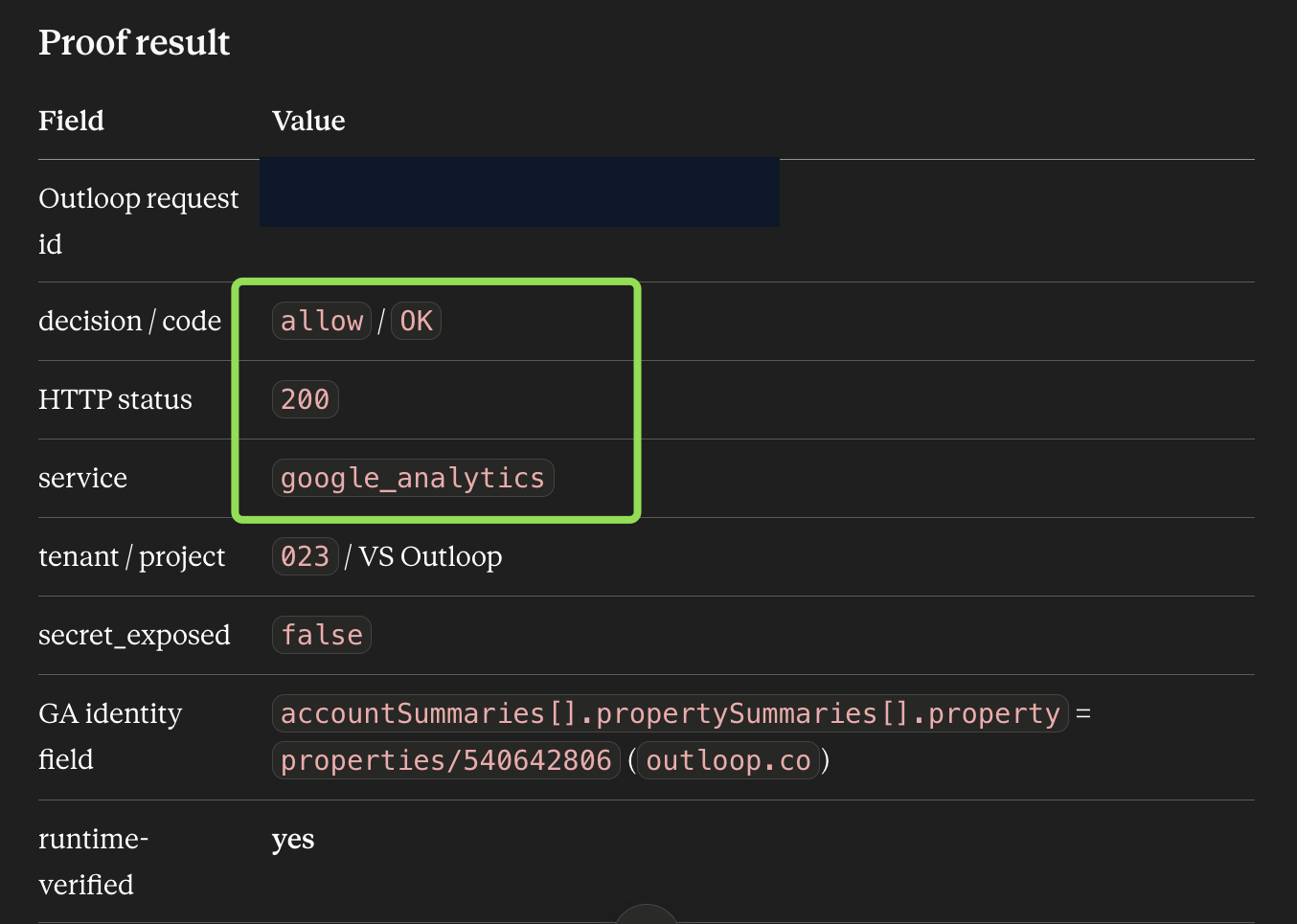

A successful, verified Outloop proof looks like this:
decision / code: allow / OK HTTP status: 200 service: google_analytics secret_exposed: false GA identity: accountSummaries[].propertySummaries[].property = properties/PROPERTY_ID runtime-verified: yes
The setup is complete when the proof shows runtime-verified: yes
and secret_exposed: false. Your agent can now use
Google Analytics GA4 through Outloop; the Google OAuth credential stays in macOS Keychain, and the agent never
sees the refresh token or access token.
Advanced — manual refresh token
Skip this if the browser connect worked. It stays documented because it still works, and because some teams prefer to mint the refresh token themselves. In the Outloop panel it sits behind the collapsed Advanced — manual refresh token disclosure.
Get a refresh token from the OAuth Playground
Open developers.google.com/oauthplayground, click the gear icon, and set: OAuth flow Server-side, Access type Offline, Force prompt Consent Screen, and check Use your own OAuth credentials. Paste the Client ID and Client secret (do not screenshot the pasted secret).
In Step 1, paste the Analytics scopes into Input your own scopes and click Authorize APIs:
https://www.googleapis.com/auth/analytics.readonly (read-only, recommended for the first proof) # or, for approved GA4 Admin writes: https://www.googleapis.com/auth/analytics.edit https://www.googleapis.com/auth/analytics
analytics.edit +
analytics only if you want approved GA4 Admin write
actions. Outloop still keeps deletes and Measurement Protocol blocked by runtime policy.
After approving the Google consent screen, OAuth Playground returns to Step 2. Click
Exchange authorization code for tokens and copy the
refresh_token (do not screenshot or publish it).

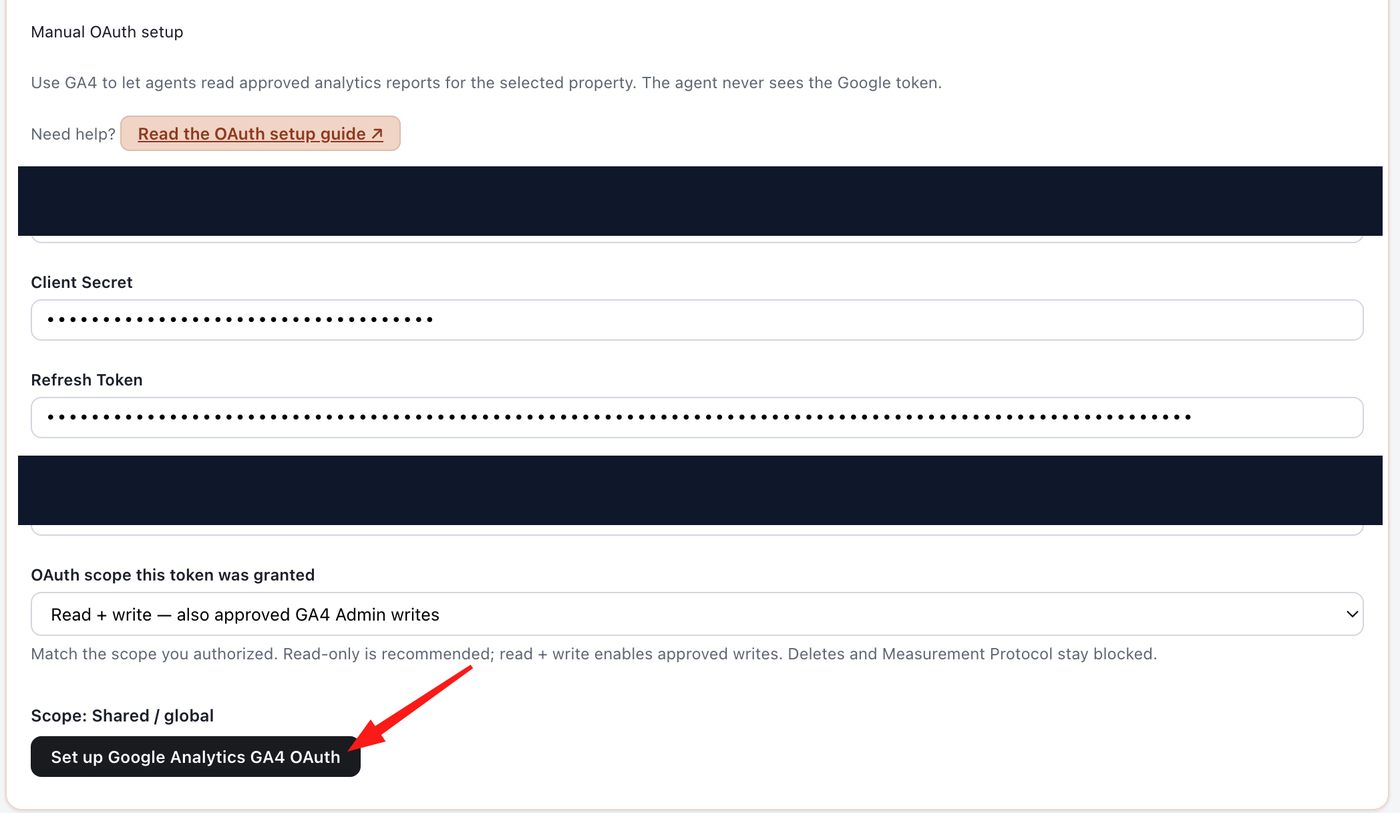

Paste the values into Outloop
Paste the values you collected, then click Save pasted refresh token:
- →Client ID and Client Secret from Google Cloud.
- →Refresh Token from the OAuth Playground.
- →GA4 property ID — the numeric ID only (e.g.
540642806), never theG-…Measurement ID. - →OAuth scope — match the scope you authorized. Read-only is recommended; Read + write enables approved GA4 Admin writes (deletes and Measurement Protocol stay blocked).
Changing the account or the credential later
Changing the account or the credential later
Three controls on the Google Analytics GA4 connector look similar and do different things. Picking the wrong one is the most common way a working connector gets broken on purpose.
Re-authenticate
Reuses the OAuth app you already selected and refreshes the authorization for the account that is already connected.
When: Use it when the refresh token expired or was revoked and you want the same account back.
Safety: It must not quietly become an account switch. If Outloop finds a different account at the other end, it reports the mismatch and keeps the previous token.
Connect as a different Google account
Keeps the same Client ID and Client Secret and opens Google's account chooser so you can pick another identity.
When: Use it when the wrong account was connected, or when the client moved the data to a different Google account.
Safety: The stored token is replaced only after Outloop positively verifies that the newly connected identity is the one you intended. A mismatch, a missing identity, a failed verification or a cancelled sign-in all leave the previous credential exactly as it was.
Replace the full credential
Swaps the OAuth app itself — a different Google Cloud project, Client ID or Client Secret.
When: Use it when the OAuth app is changing hands, or a client is moving the connector onto their own Cloud project.
Safety: This is not the same as choosing another Google data account. Confirm with "Sign in and replace" only when you actually mean to change the app.
Verified vs not claimed yet
- Verified GA4 read access through Outloop:
accountSummariesreturned HTTP 200 with decision allow, an audit entry, the property identity (properties/{property_id}), andsecret_exposed: false. - Supported, not verified yet GA4 Admin write actions under the wider
analytics.editscope: permitted through bridge policy when authorized, but not runtime-verified in this guide. - Not claimed Property deletes and Measurement Protocol ingestion stay blocked by runtime policy — this guide makes no claim that agents can perform them through Outloop.
GA4 API through Outloop vs the Google Analytics MCP
Google publishes a
Google Analytics MCP server
and titles it Experimental — Google's own word, not ours. It
covers both the Admin API and the Data API, including run_report,
and it is read-only: its credentials use the
analytics.readonly scope. For an analyst
exploring one account conversationally, that is a genuinely useful tool.
The difference that matters for agency work is scope. The MCP server reaches whatever the credential you configure can reach, and Google's setup guidance is simply to make sure that credential "has access to your Google Analytics accounts or properties." One agency login usually reaches every client property at once. Outloop narrows it deliberately: the workspace is pinned to one numeric Property ID, so a report request cannot quietly resolve to a different client. The MCP server exposes the capability; Outloop decides which client's property it may be used on.
| Dimension | GA4 API through Outloop | Google Analytics MCP (official) |
|---|---|---|
| Status here | Read proof verified accountSummaries returned HTTP 200, decision allow, audited, secret_exposed:false. | Not connected here Published by Google and titled Experimental; not connected or tested in this workspace. |
| Credential handling | Never seen by the agent Client secret and refresh token stay in the macOS Keychain; access tokens minted host-side. | Local server config Runs locally against Application Default Credentials you configure. |
| Which client property is used | Pinned per workspace Workspace is pinned to one numeric GA4 Property ID. | Whatever the credential reaches Bounded by the configured credential’s Google Analytics access; no per-workspace pinning. |
| Write operations | Permitted under policy Admin writes allowed under the wider analytics.edit scope when authorized; not runtime-verified here. | Read-only Uses the analytics.readonly scope. |
| Audit trail | Local audit log Every request written locally with decision, HTTP status, and secret_exposed:false. | Not per-workspace No local per-client audit of which property an agent queried. |
Troubleshooting
Google shows an account chooser
Expected. Outloop asks Google for the chooser on purpose, so a sign-in can never silently reuse whichever account your browser happened to be logged into. Pick the account that owns or can open the client's GA4 property — which is often not the account that manages the Google Cloud project.
“Google hasn’t verified this app”
This appears because the OAuth app is your own and has not been through Google's verification. If it is your app and you trust it, expand Advanced and continue. If you do not know who owns the app, stop — that warning is doing its job, and clicking past an unknown app is not a routine step.
Which audience the app uses decides who can get that far at all. An External app in Testing only admits accounts added as Test users. An Internal app only admits accounts inside its Google Workspace organisation. For customer-facing production use, complete Google's verification rather than living in Testing.
The wrong Google account got connected
Use Connect as a different Google account on the connector. It keeps the same Client ID and Client Secret and reopens Google's chooser. The stored token is only replaced once Outloop verifies the new identity is the intended one — if it does not match, Outloop reports the mismatch and keeps the previous credential. Nothing is lost by trying.
A credential that works but sits on the wrong account is deliberately not marked runtime-verified for that workspace. Working and correct are different things.
BACKEND_AUTH_FAILED during connect
Google rejected the sign-in, so the new credential failed Outloop's safe verification. The important part: the previous credential is unchanged. Do not delete the connector, the OAuth app or the workspace as a first move. Check, in this order — that you signed in as the account that can reach the client's GA4 property; that the account is admitted by the app's audience (a Test user on an External+Testing app); and that the API is enabled in the right Cloud project. Then try the connect again.
Reconnecting never asked for the Client ID and Secret
Expected. Disconnecting a Google Analytics GA4 credential does not delete your saved Google OAuth app profile — that is a separate object, kept on purpose so later connectors do not re-enter a Client Secret. Outloop reused it. If you specifically want a different app, pick another saved profile from the Google OAuth app dropdown, or create a new one and save it alongside. This is reuse working, not a stale credential silently retained.
“Copy workspace run prompt” is not available
The Access Profile has not been saved yet. Open the Access Profile, choose the reach and the capabilities, and click Save Access Profile — the run prompt becomes available once the authorization is recorded. OAuth succeeding is not the same as the workspace being authorized, and this is the step that closes the gap.
The connection stops working after about a week
If the OAuth app's audience is External and its publishing status is still Testing, Google expires refresh tokens for that app after roughly seven days. Two honest options: publish the app to In production, or use an Internal audience if everyone signing in is inside your Google Workspace organisation. Publishing may require Google's verification review depending on the scopes the app requests — that is Google's process and its outcome and timing are not ours to promise.
I pasted a value that starts with G-
That is the Measurement ID, not the GA4 Property ID. Go to Admin → Property details and copy the numeric Property ID (e.g. 540642806).
I do not see a refresh token
In the OAuth Playground, confirm Use your own OAuth credentials is checked, Access type is Offline, Force prompt is Consent Screen, and the redirect URI in Google Cloud is exactly https://developers.google.com/oauthplayground. Then authorize again.
The proof returns 403
Usually the Google user who created the refresh token does not have access to that GA4 property, or the wrong OAuth scope was authorized. Confirm the user's GA4 access and that the scope in Outloop matches the scope you authorized in the OAuth Playground.
The proof shows a config issue
Check that both the Admin API and the Data API are enabled, the client ID and secret are correct, the refresh token is pasted, the Property ID is numeric, and the scope in Outloop matches the scope authorized in the OAuth Playground.
Adding another GA4 property
Reuse the same Google Cloud project and OAuth client if the same Google user has access. In Outloop, add another Google Analytics GA4 entry or assign the shared connector to the right workspace, and always pin the correct numeric GA4 Property ID.
Rotate or revoke access
- →Move a workspace off a property — change the pinned numeric Property ID and save. The workspace's reach changes immediately; the credential is untouched.
- →Rotate the token — use Re-authenticate on the connector. Same account, fresh authorization.
- →Revoke everything for this connector — remove the GA4 credential in Outloop, then revoke Outloop's access for that account at myaccount.google.com/permissions. Do both: removing the local credential does not revoke the grant at Google.
- →Off-boarding a client — also ask them to remove the connected address from the GA4 property's user list. Revoking on your side does not remove that account's standing access on theirs.
Official Google documentation
- →Google Analytics Data API v1 reference — runReport, runRealtimeReport and the property resource path.
- →Google Analytics Admin API reference — account and property configuration, including the writes the read+write tier permits.
- →OAuth app audience and publishing status — Internal vs External, Testing, and Test users.
- →Using OAuth 2.0 to access Google APIs — refresh-token behaviour, including the Testing-status expiry.
